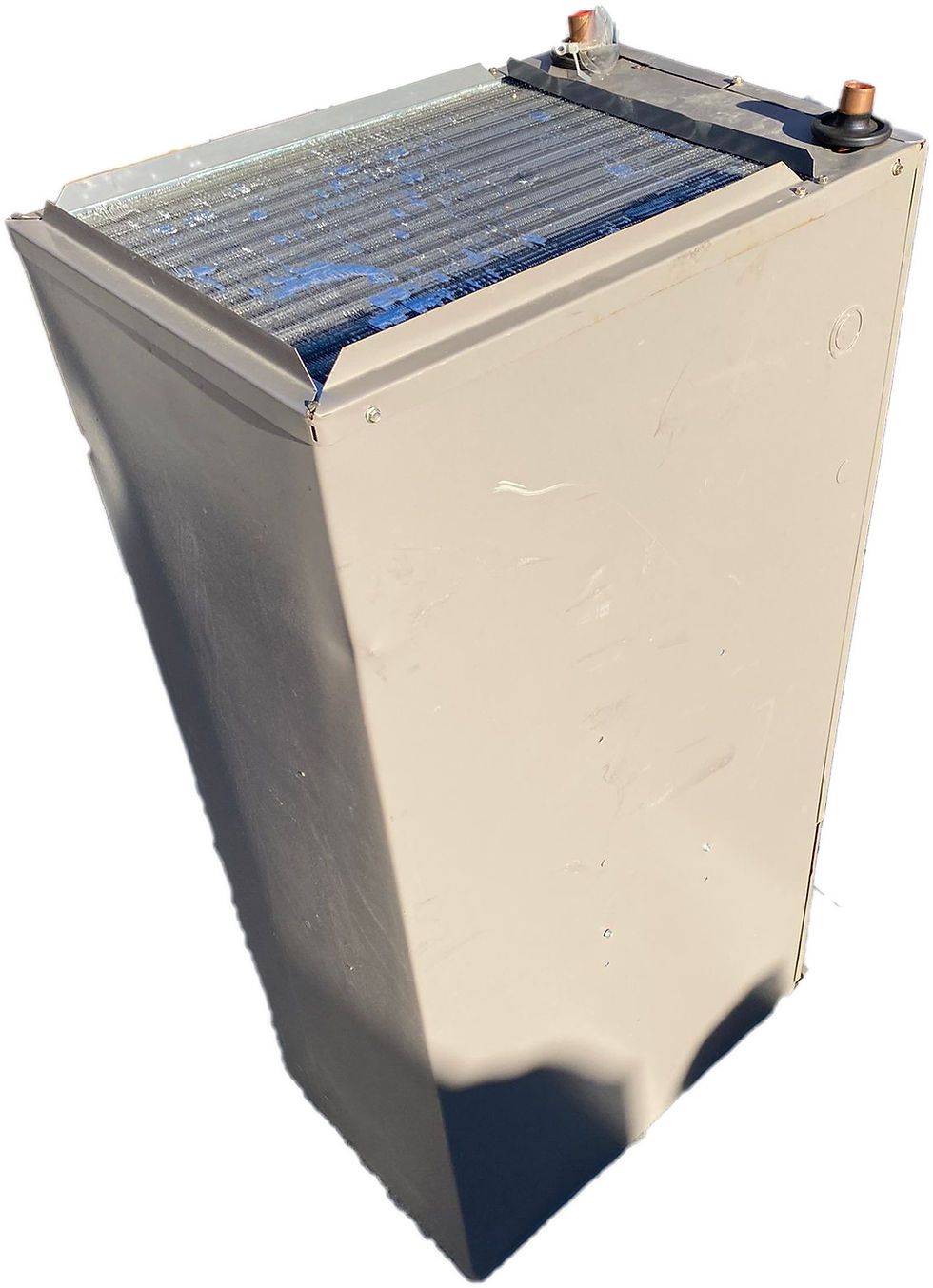

ADP 2 Ton 24000 BTU Multi-Position Hydronic Air Handler with Piston Metering Device

For use with R-410A refrigerant or R-22 with accessory TXV
Accessory field-installed electric heat kits available in 5, 7.5, or 10 kW
40 VA 208/230v-1-60 transformer
PSC motor on all models
A-coil design for maximum surface area
Multiple electrical, refrigerant lineset and drain line entry for application flexibility
Sweat connections for long term reliability
Grooved copper tubing
5 year parts limited warranty


Suitable for use with R-410A
Right hand horizontal drain pan position
Easy to replace hot water heat kits, available factory or field installed
Magnetic filter rack door for easy access and replacement
Standard sized fiberglass air filter included with every air handler
Voltage: 120/1/60 with time delay and 130°F aquastat
Hot water coil without pump and valve assembly:
2N: 2 row hot water coil (sizes 12-30, 36)
3N: 3 row hot water coil (all sizes)
00 = No Heat
Water connections 7/8" ODF (for 3/4" water pipe) on 12-30, 36 size models and 1 1/8" ODF (for 1" water pipe) on 31, 37 - 60 size models.
Variable-speed high efficiency ECM motor or 3 speed motor
Variable-speed features:
Maintains selected CFM over wide range of static conditions
Standard fan time delay feature
Constant air circulation setting for improved IAQ
LED display for visual indication of air volume
Easy to read plug and play multi-function control board, standard on all models:
1. Controls both factory and field installed circulating pumps
2. 24 VAC isolation valve control
3. Auxiliary contacts for water heater or boiler activation
4. Freeze protection activates at 40°F
5. Thermostat connections
6. 60 second time delay for blower activation

Depth (In.):22
Width (In.):15
Height (In.):44
Shipping Weight (Lbs.):152
Metering Device:Non-Bleed HP-A/C TXV
Motor Type:3-Speed
Nominal Tons:2
Nominal Tons:2.0
Refrigerant:R410A
Voltage:115/1
