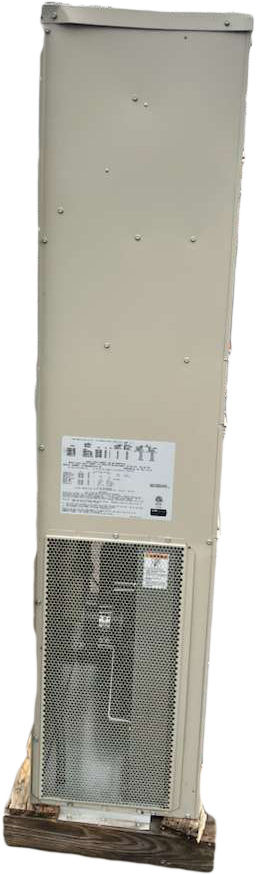

Bard W30AB-A05 2.5 Ton Air Conditioner Wall Mount

The Bard Wall-Mount Air Conditioner is a self contained energy efficient heating and cooling system, which is designed to offer maximum indoor comfort at a minimal cost without using valuable indoor floor space or outside ground space. These units are the ideal products for versatile applications such as: new construction, modular offices, school modernization, telecommunication structures, portable structures or correctional facilities. Factory or field installed accessories are available to meet specific job requirements.

Engineered Features:

Aluminum Finned Copper Coils Rifled tubing and enhanced louvered fin for maximum heat transfer and energy efficiency.

Quiet Twin Blowers: Designed to accept full ducted system or for non-ducted free blow installations.

Air Conditioner Compressor: Scroll Compressors eliminate need or crankcase heater. Standard on all models.


Designed with R-410A (HFC) non-ozone depleting refrigerant in compliance with the Montreal protocol and 2010 EPA requirements.

Liquid Line Filter Drier: Standard on all units. Protects system against moisture.

Galvanized 20 Gauge Zinc Coated Steel Cabinet: Cleaned, rinsed, sealed and dried before the polyurethane primer is applied. The cabinet is handsomely finished with a baked on textured enamel, which allows it to withstand 1000 hours of salt spray tests per ASTM B117-03.

Electric Heat Strips: Features an automatic limit and thermal cut-off safety control. Heater packages can be factory or field installed.

Filter Service Door: Separate service door provides easy access for filter change.

One Inch, Disposable Air Filters: Are standard equipment. Optional one inch washable filters available and filter racks permit the addition of 2" pleated filter. Factory or field installed.

Condenser Fan and Motor Shroud Assembly: Slides out for easy access.

Barometric Fresh Air Damper: Standard on all units. Allows up to 25% outside fresh air. Optional ventilation packages available.

Built-in Circuit Breakers: Standard on all electric heat versions of single (230/208 volt) and three phase (230/208 volt) equipment. Toggle disconnects are standard on all electric heat versions of three phase (460 volt) equipment.


Top Rain Flashing: Standard feature on all models.

Slope Top: Standard feature for water run-off.

Compressor Control Module: Standard on all units. Built-in off- delay timer adjustable from 30 seconds to 5-minutes. 2-minute on-delay if power interrupt. 120-second bypass for low pressure control, and both soft and manual lockouts for high and low pressure controls.

Alarm output for alarm relay.

High & Low Pressure Switches are Auto-Reset: Standard on all units. Built-in lockout circuit resets from the room thermostat. Provides commercial quality protection to the compressor.

Barometric Fresh Air Damper: Allows up to 100 CFM of fresh air.

Full Length Mounting Flanges: Built into cabinet for improved appearance and easy installation.

Ultra Efficiency
230/208/60/1
Capacity: 2.5 Ton
Cert. EER: 11
Heat Strip: 5 KW
Electrical: 32 MCA, 35A C/B, 8w 10g
Compressor Type: Scroll
Service Access: Right
Shipping Weight: 400
DIM: 43"w x 22"d x 80"h
