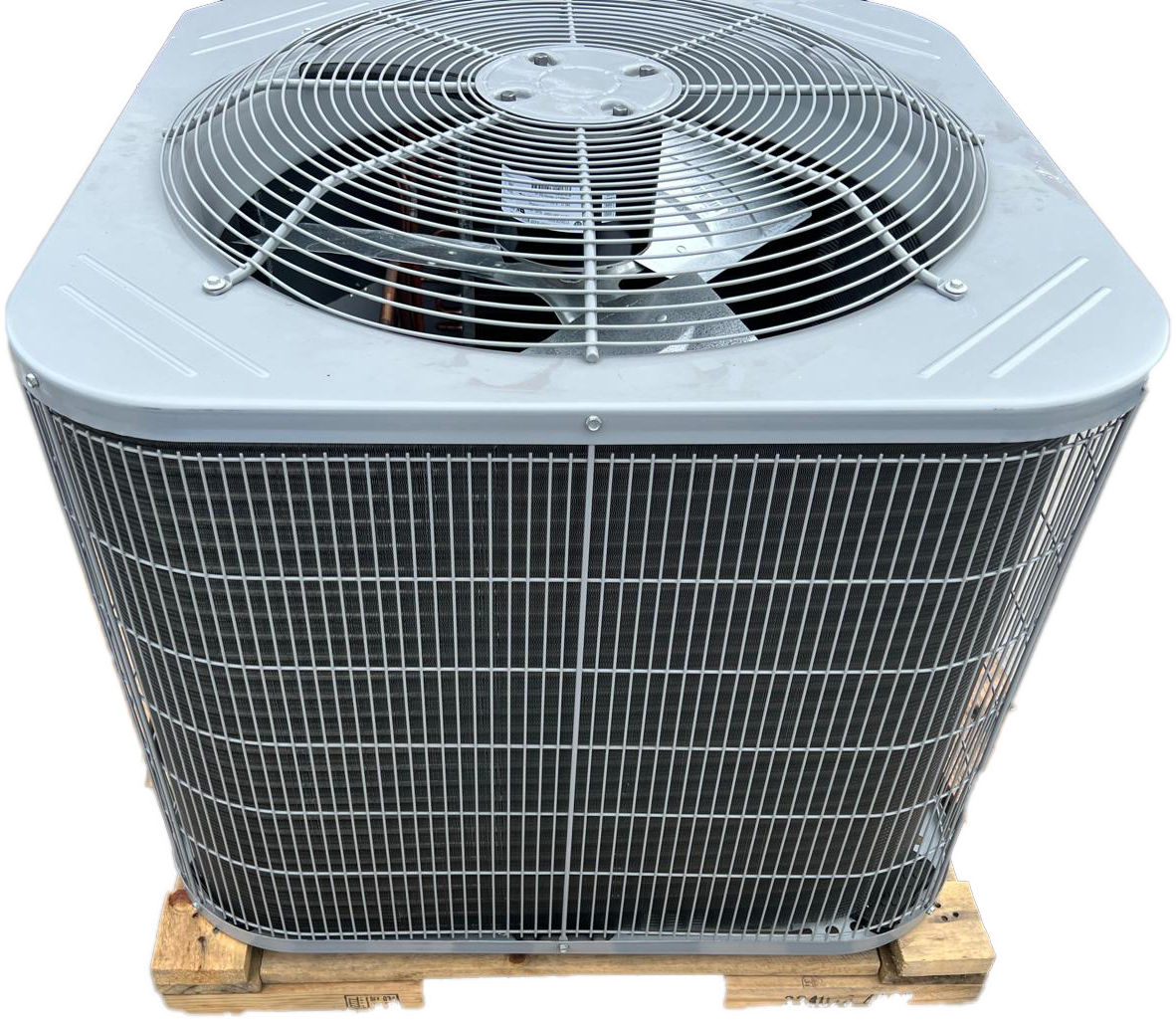

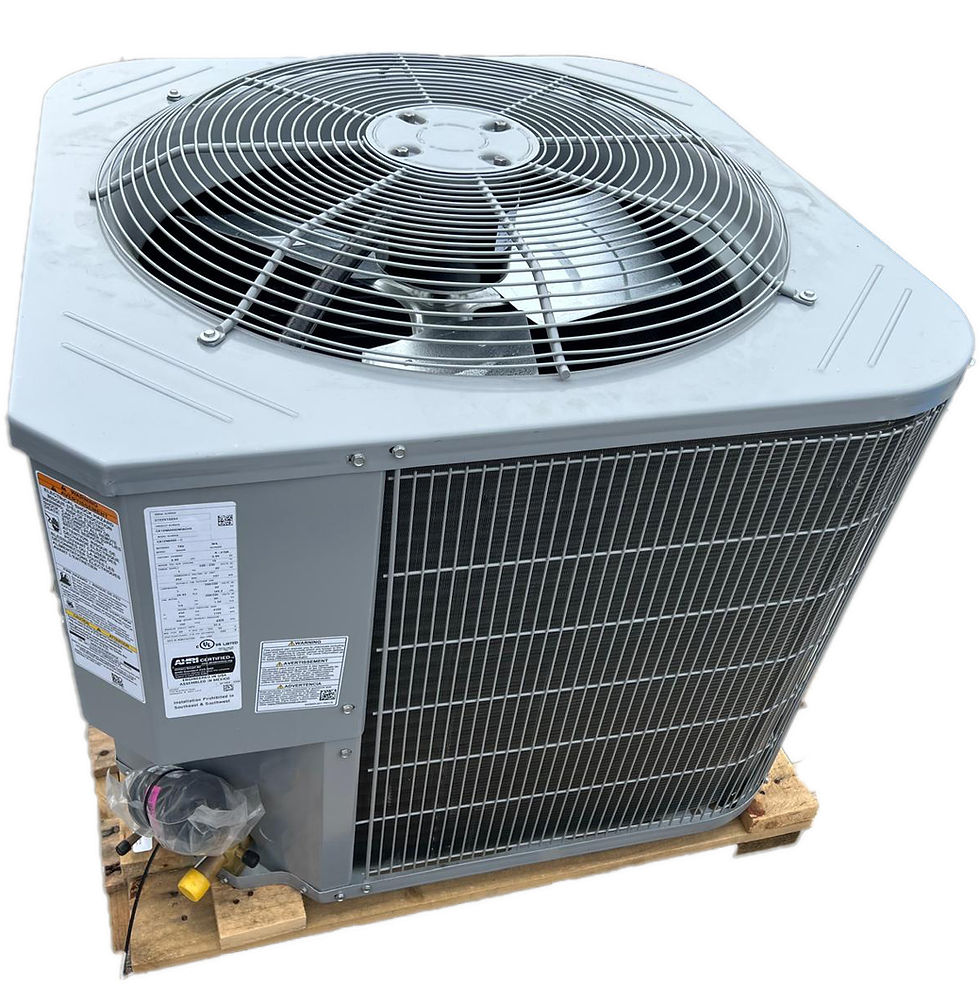

Carrier 5 Ton R 410A AC Condenser 208/230 V 1 Phase
CA13NA0600NGACHA

Features / Benefits
Efficiency
• 13.0 SEER / 11.0 EER (based on tested combination)
• Microtube Technology™ refrigeration system
Reliability
• Non-ozone depleting Puron® refrigerant
• Scroll compressor
• Internal pressure relief valve
• Internal thermal overload
• Filter drier
Durability
WeatherArmor™ Protection Package:
• Solid, durable sheet metal construction
• Dense wire coil guard
Durability
• Pre-painted cabinet finish over galvanized steel.
• Coated inlet grille with 2” (51mm) spacing standard. Alternate models
available with 3/8” (10 mm) spacing for extra protection (hail guard).
Applications
• Long–line – up to 250 feet (76.20 m) total equivalent length, up to 200
feet (60.96 m) condenser above evaporator, or up to 80 ft. (24.38 m)
evaporator above condenser (See Longline Guide for more
information.)
• Low ambient down to (–10°F/–23°C) with accessory kit.

Specifications
Brand Carrier
CFM 3400
Compressor Stage 1
Configuration Vertical
Cooling Capacity 57500
Family Sentry
Gas Stages 1-Stage
Nominal Seer 13
Refrigerant R410A
Tonnage 5
Voltage (Phase) 208/230 V 1-Phase
Air Flow Vertical
Compressor Scroll
Condenser Motor Type Permanent Split Capacitor
EER 10.5, 11.5
Frequency 60
Motor Phase 1
Number Of Fan Blades 3
SEER 13
Shipping Weight 220 lbs
