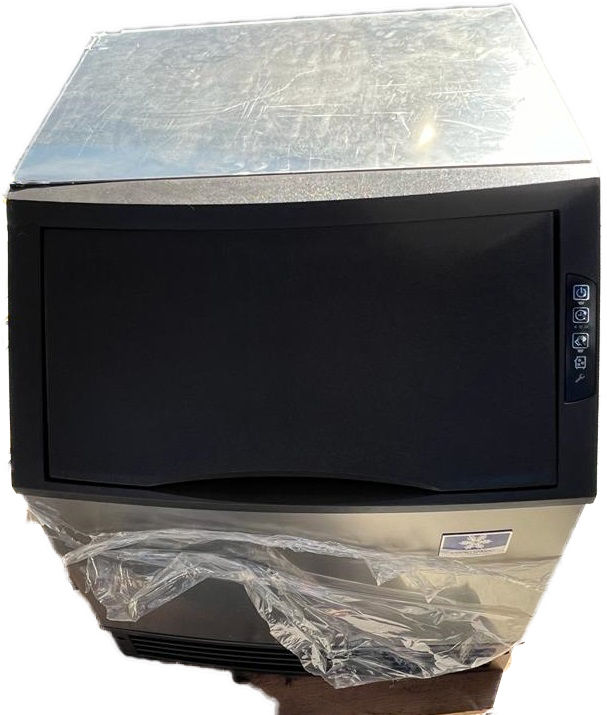

Manitowoc Ice UYF0140A 26"W Half Cube NEO Undercounter Ice Machine - 137 lbs/day, Air Cooled
The Manitowoc UYF-0140A Neo® undercounter ice maker produces half-dice ice that measures 3⁄8 inch by 11⁄8 inch by 7⁄8 inch. In a 24-hour period, the unit makes 137 pounds of half-dice ice if the ambient temperature is 70 degrees Fahrenheit. The delay function allows operators to pause ice production during closed or slow business hours. The storage bin holds up to 90 pounds, and an ergonomic scoop is included to prevent ice from being contaminated by bare hand contact.
Installation and maintenance are simple since the air-cooled condenser is self-contained, and servicing the Manitowoc UYF-0140A Neo undercounter ice maker is easy thanks to the accessible refrigeration components. The plastic food zone has a removable damper door, water trough, and distribution tube so they can be quickly cleaned. The feedback program uses indicator lights to let operators know about full bin conditions and service needs.
Product Details
137-lb. maximum daily ice production
100-lb. AHRI-certified daily ice production
Half-dice ice size: 3⁄8 in. x 11⁄8 in. x 7⁄8 in.
Full bin and service indicators provide convenient feedback
Delay function pauses ice production for slow periods
Easy installation and maintenance thanks to the air-cooled condensing unit
Refrigeration components are accessible for quick service
Smooth, sealed food zone has a removable distribution tube, damper door, and water trough for simple cleanup
AlphaSan® antimicrobial protection on the integral components slows bacteria growth
90-lb. storage bin capacity
Ergonomically designed plastic scoop is included
2,150 BTU of heat transfer capacity
Dimensions & Utilities
26 in. W x 281⁄2 in. D x 381⁄2 in. H
5 A, 0.42 HP, 9.2 kW
115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
Manufacturer Manitowoc Ice
24 Hr. Production (lb) 137
Also Known As UY-0140A
Bin Capacity (lb) 90
Compressor Type Air Cooled
Depth (in) 28.5
Drain Type Gravity
Height (in) 38.5
Hertz 60
Ice Type Half Cube
Special Features Antimicrobial
Special Features Digital Controls
Special Features Removable Air Filter
Suggested Use Commercial
Voltage 115
Warranty 3-year Warranty, 5-year Compressor Parts
Width (in) 26
Series NEO®
Phase 1
Product Undercounter Ice Machines
Product Type Ice Makers & Bins
Weight 153.00
