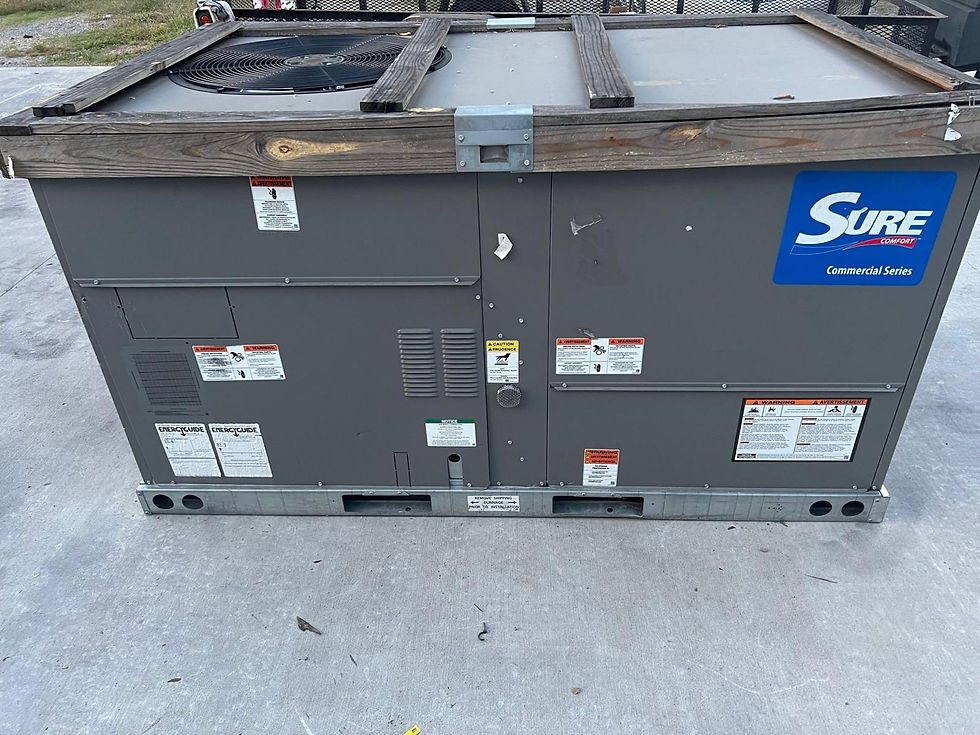

RGECZR048AJT RGECZR Commercial 4 ton gas pack ACHIEVER SERIES

Factory charged with R-410A HFC refrigerant
Wired and run tested
Scroll compressors with internal line break overload and high pressure protection
Convertible airflow – vertical down flow or horizontal side flow
Forkable base rails for easy handling and lifting
Cooling operation up to 125°F ambient
Two-stage gas heat input with direct spark ignition system, solid state furnace controls, and optimized induced draft combustion
MicroChannel evaporator and condenser coil
PlusOne® ServiceSmart package includes:
Qwik-Change Flex-Fit Rack™
Qwik-Slide Blower Assembly™
Qwik-Clean Drain Pan™
Over-flow condensate sensor
PlusOne® Diagnostics with Dual 7-Segment LED Display to meet code compliance
One-piece top cover and base pan with drawn supply and return opening
Two-piece control door
¼ turn fasteners on filter access door
Color-coded and labeled wiring
External lockable gauge ports
TXV refrigerant metering system
Solid-core liquid line filter drier
High pressure and low pressure/loss of charge protection with built-in Smart Logic
Insulation encapsulated throughout entire unit
New product footprint with matching connections
6 Ton includes a single 2-Stage compressor
3-5 Ton includes one single-stage compressor

Gross Cooling Capacity
49000 Btu14.36 kW4 TR
EER
11.2
SEER
14
Nominal CFM
1600 ft³/min755 L/s
AHRI Rated CFM
1730 ft³/min816 L/s
AHRI Net Cooling Capacity
47500 Btu13.92 kW
Net Sensible Capacity
35100 Btu10.28 kW
Net Latent Capacity
12400 Btu3.63 kW
Net System Power



Manufacturer Spec
https://abrwholesalers.com/media/assets/product/documents/Rheem/RGECZR/SpecificationSheet_R11-873_Rev2.pdf

Sound Level
83.8 dB
Refrigerant Charge
2552 g90 oz
Voltage
208 to 230 V
Frequency
60 Hz
Number of Phases
1
Minimum Circuit Ampacity
34 A
Minimum Overcurrent Protection Device Size
40 A
Maximum Overcurrent Protection Device Size
50 A
Drive
Direct Drive Standard Static Constant Torque
Weight
263 kg580 lb
Shipping Weight
618 lb280 kg
