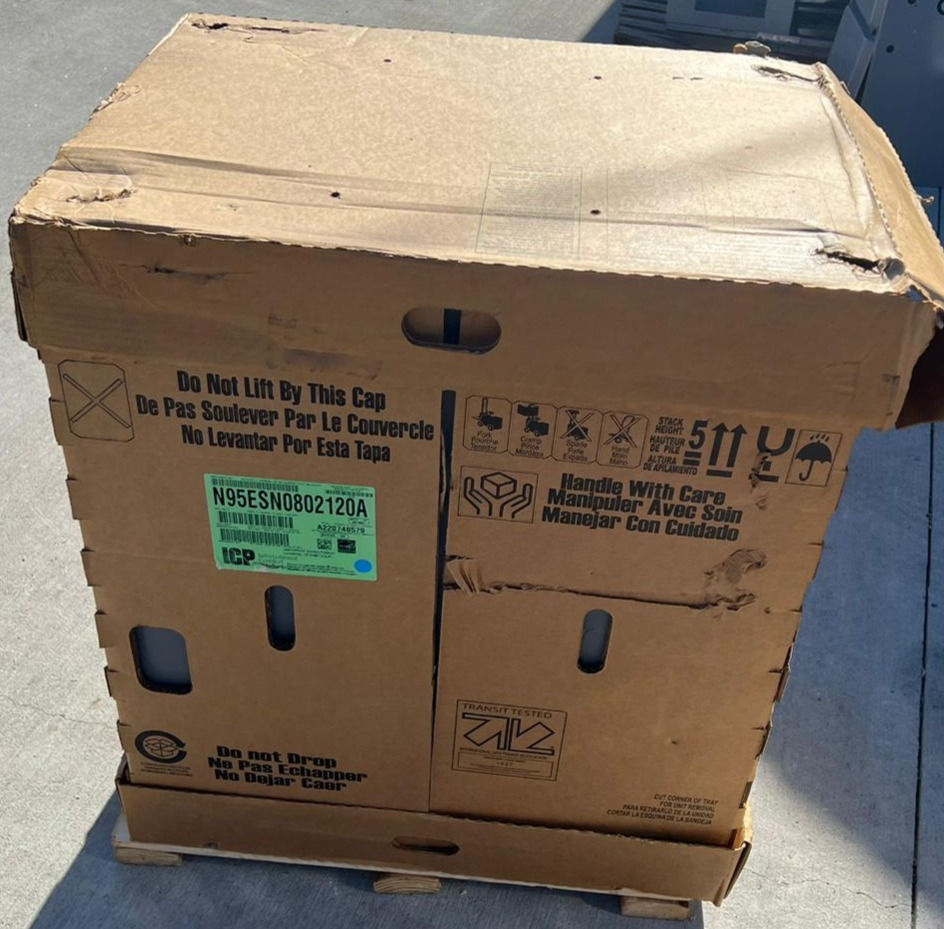

Tempstar 80k BTU 96% AFUE Single Stage Gas Furnace Multi-Positional

Designed to be a high-efficiency furnace, the Tempstar N95ESN0802120A is a money saving unit to provide heating throughout even the coldest months of the year. With its multi-positional design, this unit is a good all-around choice for nearly any application.

QUICK FACTS
80,000 BTU, 96% AFUE natural gas furnace
Generally suitable for up to an average-sized house in ideal applications
Multi-positional design, can be installed in the upflow, downflow, or horizontal orientations
Single stage burner with a multi-speed blower
On board self-diagnostics
Energy Star certified

80,000 BTU, 96% AFUE
The Tempstar N95ESN0802120A has an input of 80,000 BTU. With an efficiency of 96%, this means that the furnace has an output of 76,800 BTU. The 96% AFUE also means that for the gas going into the furnace, 96% of it is used to heat your home while only 4% is lost out of the flue piping and lost to normal furnace operations. All furnaces at this efficiency (90% and above) requires plastic/PVC flue venting, and if metal flue venting is required for your installation, an 80% efficient furnace would be needed instead. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost. Please note that this furnace is not Ultra Low NOx compliant and if shipped to California may be subject to a mitigation fee.

Warranty
Tempstar offers 10 year parts warranty and lifetime (20 year) heat exchanger limited warranty. Please note that in order for these warranties to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.

Installation and Durability
With its ability to be installed in any configuration, upflow, downflow, or horizontal, the Tempstar N95ESN0802120A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round.

Quiet Comfort
Every Tempstar furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and
more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.

High Efficiency
Tempstar saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.

Longer life, longer warranty
Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by Tempstar’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.

Weight (in lbs)   154.000000
Brand/Manufacturer      Tempstar
Furnace Efficiency / AFUE             96%
Heating BTU       80,000
Blower Motor    ECM
Maximum CFM 1855
Configuration    Upflow/Downflow/Horizontal
Burner Stages    Single
Fuel Type            Natural Gas
Height   35"
Width    21"
Depth   29 1/2"
Warranty             20 Year Heat Exchanger / 10 Year Parts with Online Registration
