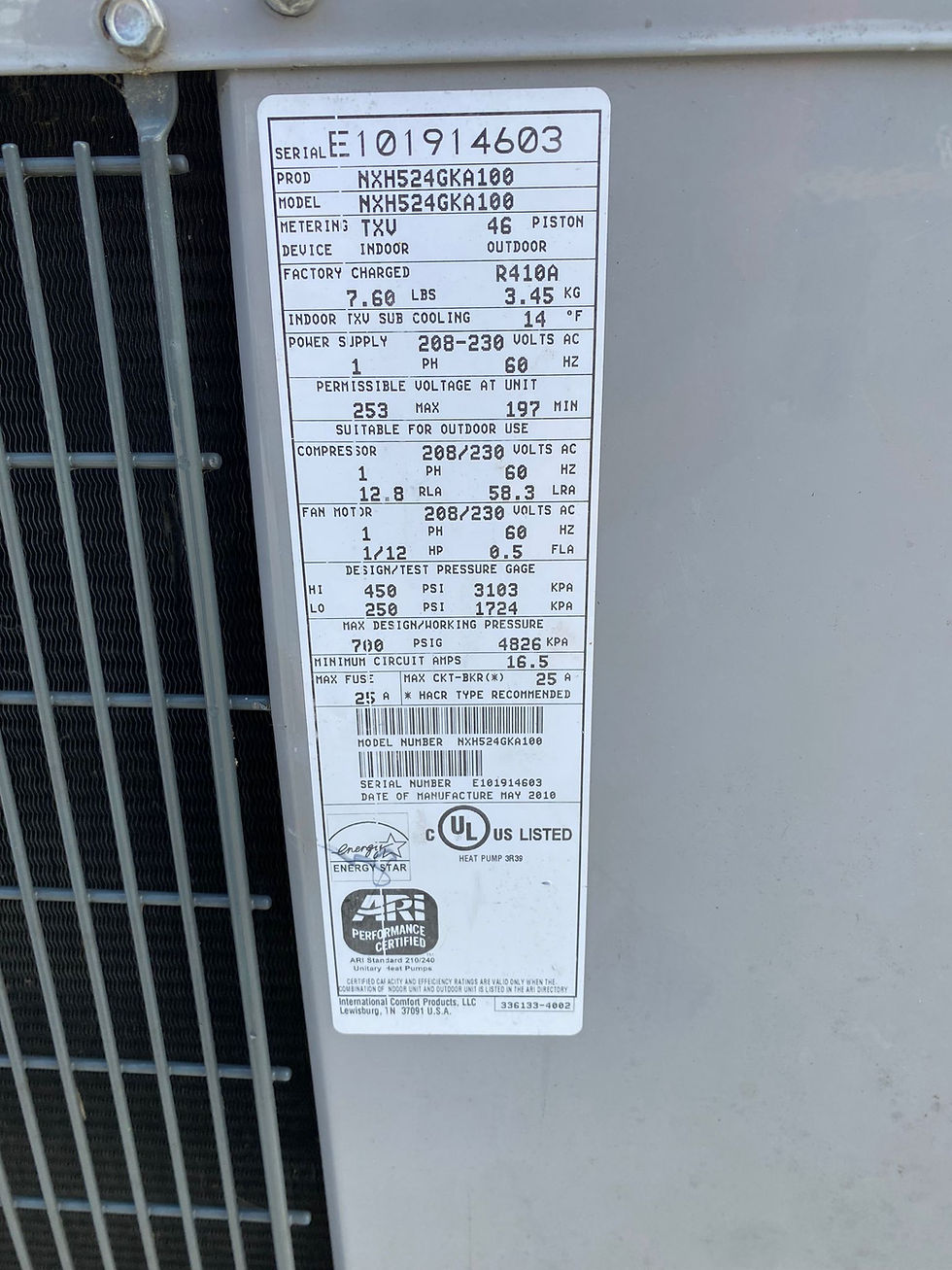

USED NXH524GKA 2 Ton 15 SEER Heat Pump Performance Series 208/230-1-60

Features
Quiet performance (as low as 69 decibels)
Single-stage compressor operation
Dual fuel capable with a compatible gas furnace and thermostat for energy-saving heating
Durably built to withstand bad weather and debris
Designed for corrosion resistance and lasting performance

Specification
Single-stage scroll compressor
Single-speed fan motor
Low pressure switch
Durable, protective inlet grille panels allow easy coil cleaning
Baked-on powder coat finish over galvanized steel
Compatible with humidity sensing thermostats
Non-ozone depleting R-410A refrigerant
Cooling capacity: 1.5–5 tons

Weight    200
AHRI - Usage    Outdoor
CBU - Compressor Bearing Unit    Yes
CFM    3223
Condenser Motor HP    1/12 HP
Condenser Motor RPM    800
Condenser Motor Speeds    1 (Single)
Condenser Motor Type    PSC (Permanent Split Capacitor)
Cooling Capacity    24000
Cycle/Hertz    60 Hz
EER    12.5
Energy Star Rated    Yes
Equipment Type    Heat Pump
ETL Listed    No
Full Load Amps    0.5
Heating Capacity    24000
High Pressure Limits    Yes
HSPF    8.5
Liquid Line Size (OD)    3/8"
Maximum Piping Length    250'
Number of Fan Blades    1
Phase    Single
Package Height    35.9375
Package Length    36.125
Package Weight    233
Package Width    39.25
Prop 65    Yes
Refrigerant    R-410A
SEER    15
Sound Level (dBA)    69
Stage    Single
Suction Line Size (OD)    5/8"
Tier    Performance™
Tonnage    2
UL Listed    Yes
UL Recognized    Yes
Voltage    208-230 VAC
Locked Rotor Amps (LRA)    58
Rated Current Amps (RCA)    12.8
Rated Load Amps (RLA)    12.8
Cubic Measurement    22.9067
Height    32.3125
Length    35
Width    35
Maximum Overcurrent Protection (MOCP)    25
Compressor Type    Scroll
